37 inch X half inch pipe loop LED tube light

USD $335.00

Pipe color *

Include optional shade *

Add an optional curved aluminum shade (see gallery images)

LED color temperature *

Internal LED Tube Cover *

Choose a cover that makes the LED’s visible or hidden with an opaque cover (see gallery image)

Low voltage cable length *

Choose here a cable length required for the pendant drop from the ceiling.

Choose a Stainless Cable length *

We will supply cables at exact length as two lengths the same or stainless cable suspension made up with loops each end at exact length selected.
To make exact length required you should select the length closest to required and advise in “order notes” section on the checkout when ordering.

Ceiling hooks *

Add here two ceiling hooks in Aluminum

Choose dimming solution *

Warranty: 1 Year

Cut Sheet PDF

Product Description

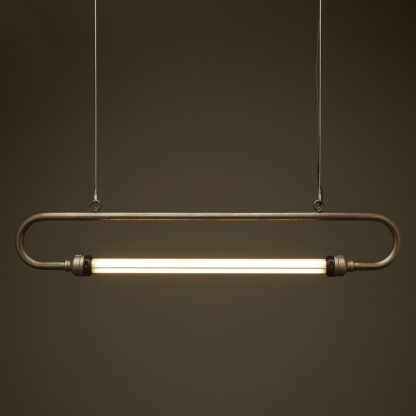

37 inch X half inch pipe loop LED tube light is a minimalist version of our bent plumbing pipe light fitting made in house with custom parts. The modern LED tube light is also made in-house to exacting standards using the best LED strip components available. There is no glass used in this tube since there is no requirement to vacuum fill like a fluorescent tube.

They are an industrial style that we think would work well in an industrial themed office, cafe or hotel. Incorporating a two foot length LED, they may also provide lighting for food preparation areas i.e., for shatterproof requirement in commercial kitchen situations. These supply a fair amount of light when at a reasonable distance from the work area.

Plumbing pipe components can be made from Galvanised surface, raw steel surface or can be painted.

This light is made from half inch NPT plumbing pipe and so the outside diameter is 0.59 inches

Suspension system

Cable suspension is stainless steel with loops made with appropriate ferrules. For stainless wire we use 1.6mm 7X7 strand. Photographs show hung with stainless steel.  If you have a required precise length please select the length closest to required and advise in “order notes” section on the checkout when ordering.

Wiring and globes

The driver location can be concealed in the ceiling space or surface mounted. All new wiring is completed ready to be installed by your electrician. We supply two hooks installed to allow use as a pendant. LED tube can removed by pushing to one end where the other end will drop. Low voltage cables have small individual plugs to disconnect.

For US and Canada, UL listed components are used but the light fitting itself is not UL listed.
TRIAC Dimming is compatible with most mains-connected trailing or leading edge dimmers. 1-10V dimming can be used with any 1-10V dimmer or other systems such as DALI.

We can include special chain hook ceiling plates, s-Hooks, Carabiners or shackles. We also supply stainless cable, Thimbles and Ferrules.

Indoor use only
120VAC (eg. US, CA).
Rated Watts: 22W
Light Source: SMD3528 120/M CRI90
Lumens: 1500lm
Colour Temperature: Warm (3000k) or Natural (4000k)
Dimmable: Yes via externally mounted driver. (Supplied)

Dimensions:

Length: 37 inches
Height: 6 inches
Pipe diameter: 0.59 inch
Weight: 5.5 lbs
