Antique brass E26 Festoon Socket with hook

$75.82$86.35

Clear

Warranty: 1 Year

Connection service

If you require these to be wired up in festoon style choose here and list the spacing between sockets in inches below

Festoon spacing

Festoon spacing length

Quantity discounts available:
1-910-2424+
$75.82$72.03$68.24

Specifications PDF

Product Description

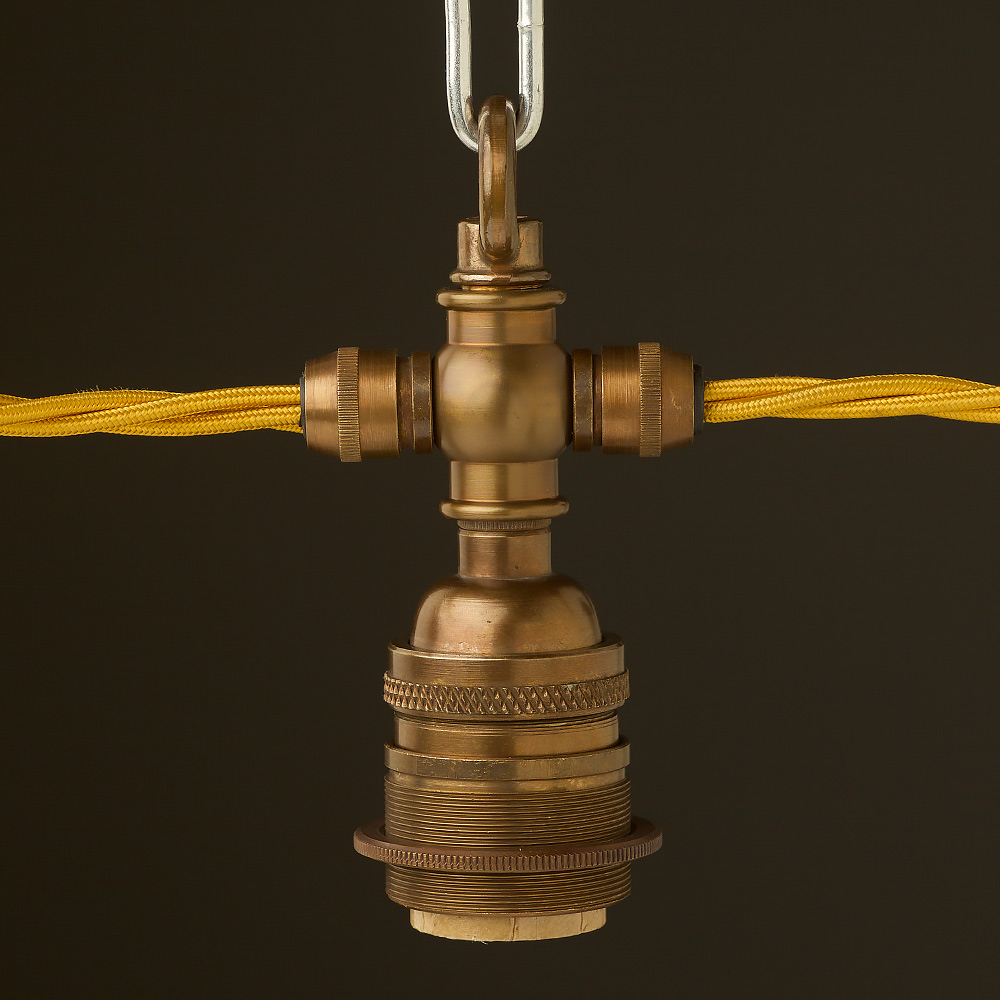

Antique brass E26 Festoon Socket with hook, suitable for both the USA and Canada being a UL Listed component. This socket is a standard 10mm rewire-able unswitched Uno thread lampbody.

The vintage nature of this socket fitting combines with the Edison Style light bulb to give a candle light type color with a great look, suited to decorative event lighting for restaurants and bars, weddings, parties or displays. The cable to use with this socket needs to be 3 core as the socket requires and earth. Wiring is an “in parrallel” festoon style with two earth, two active wires and two neutral wires. Cut cables to length to allow for lamp holder spacing, twist together actives and connect to brass connector then do the same for the neutral and earth connector. Feed the cable back through upper exit points carefully to allow lamp holder base to screwed into position. Fit cordgrip grommets and screw cord grip securely. The hook is fitted to enable the string light to be suspended from thin wire or chain so as to take strain of the total weight.

Optional body conversion to 48 mm thread shade nut system





Max Diameter UNO 1.5″
Max Diameter Shade Nuts 2″
Height: 6″
Max 660W
120V
UL File No E227063
