Cloth Covered Braided 3 Core Lighting Flex 120V

$2.11

Clear

Warranty: 1 Year

Quantity discounts available per foot:
1-1920-199200+
$2.11$2.00$1.90
Multiples chosen here are for feet. Lengths ordered are supplied as one piece.

Specifications PDF

Product Description

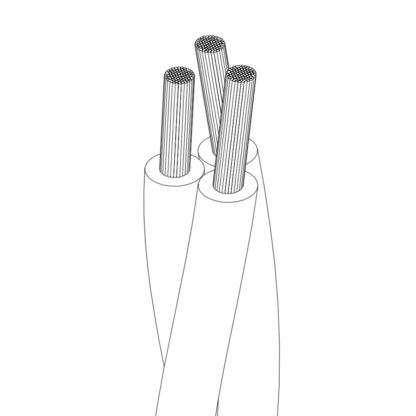

Cloth Covered Braided 3 Core Lighting Flex 120V with active, neutral and ground wires in a twisted pattern. The earth wire allows it to be used to earth metal light fittings. For 2 core applications, the green wire can easily be removed prior to wiring.

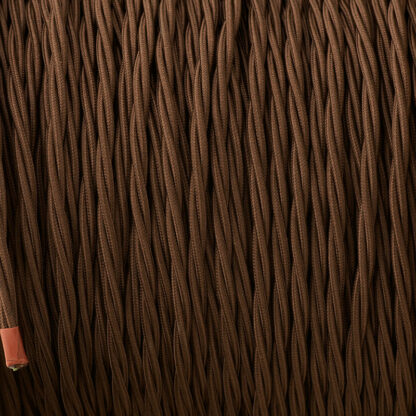

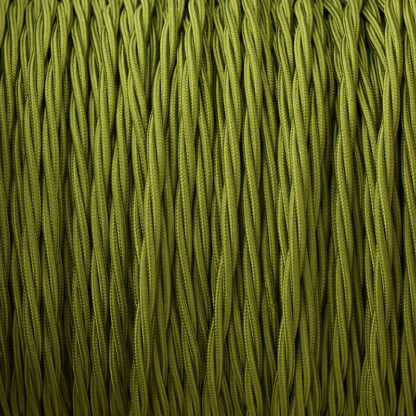

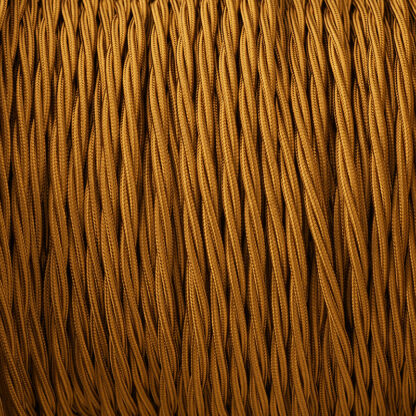

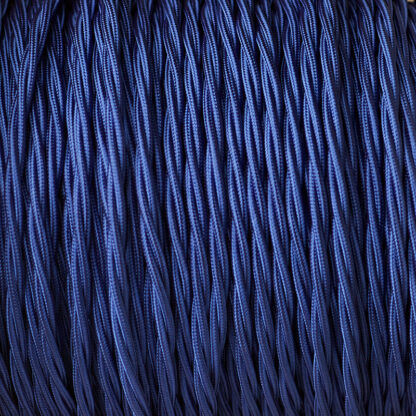

A wide variety of colors are available to contrast or compliment your decor.
Custom colors and patterns are available to order, subject to minimum order quantities.

This cable is constructed utilizing UL recognized style AWM-1015 cores with a secondary reinforcing PVC jacket (double insulated). A decorative braid is individually applied prior to twisting. This cable has also been carefully designed to provide a minimal overall diameter, enabling it to pass easily through grommets and tubes.

Applications: Lighting pendants, table and floor lamps, rise and fall pendants.

Please note: Lengths ordered are supplied as one continuous piece, ie order 6ft and you will receive a single, continuous 6ft length.

Operating temperature: +220°F maximum outer insulation temperature
Operating Voltage: 600V
Current Rating: 6A
Cores: 3
Cross Sectional Area: 18AWG
Multi-stranded annealed tinned copper.
Insulation: Double insulated PVC/PVC
Insulation Colours: black, white, Green
Braiding Material: Poly cloth
Average Diameter: 0.245″
Static suspension load: 8.8lb Max.
UL listing: E189674 (Table of recognized style: AWM-1015)
