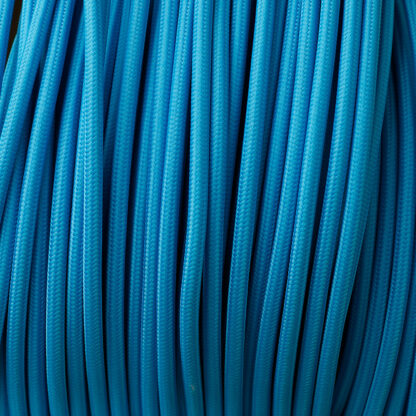

Pulley Cord 2 Core Cloth Covered Flex 120V

Price range: USD $2.72 through USD $3.40 per ft

  • Operating temperature: +220ยฐF maximum outer insulation temperature
  • Operating Voltage: 300V
  • Current Rating: 6A
  • Cores: 2
  • Cross Sectional Area: 18AWG
  • Multi-stranded annealed copper.
  • Insulation: Double insulated PVC/PVC
  • Insulation Colours: black, white.
  • Braiding Material: Poly cloth.
  • Average Diameter: 0.245โ€ณ
  • Static suspension load: 8.8lb Max.
  • UL listing: E189672

Tariff information

  • Country of manufacture: United Kingdom
  • Harmonized code: 85441100
Shipping Weight: 0.05lbs

Warranty: 1 Year

Cut Sheet PDF

Product Description

Pulley Cord 2 Core Cloth Covered Flex 120V with active and neutral wires in a round outer sheath.

A wide variety of colors are available to contrast or compliment your decor.
Custom colors and patterns are available to order, subject to minimum order quantities.

This cable is constructed utilizing UL recognized style STP cores with a secondary reinforcing PVC jacket (double insulated). A decorative braid is applied over. This cable has also been carefully designed to provide a minimal overall diameter, enabling it to pass easily through grommets and tubes.

Applications: Lighting pendants, table and floor lamps, rise and fall pendants.

Please note: Lengths ordered are supplied as one continuous piece, ie add to cart โ€œ6โ€  and you will receive a single, continuous 6ft length.
